MSH launches new 30W 1A1C PD3.0 charger

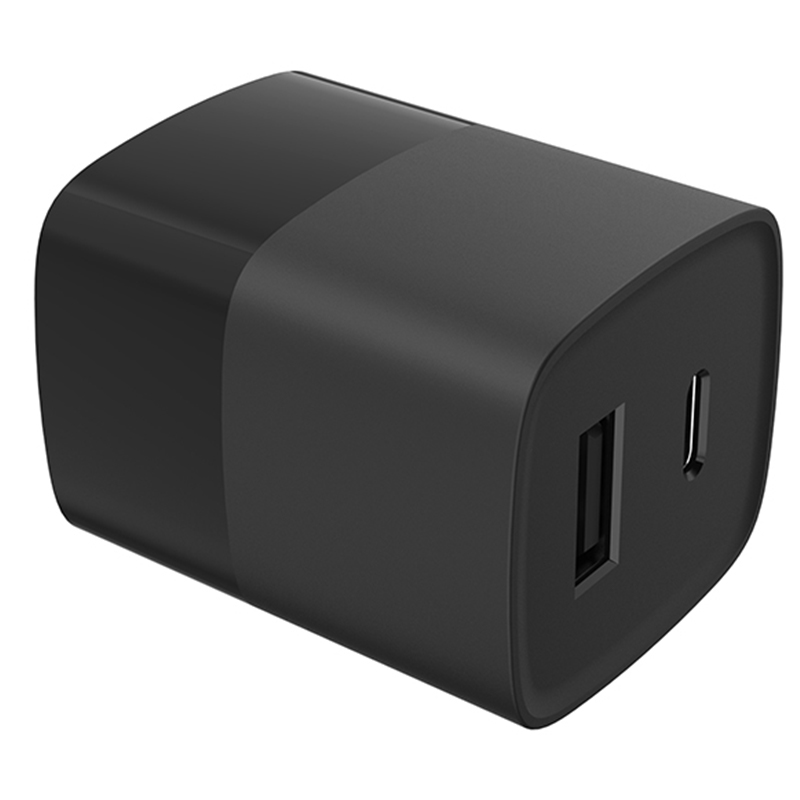

MSH has launched a 30W dual-port PD3.0 charger. This charger has folding pins and has a small and exquisite appearance. The charger adopts 1C1A dual interface design, supports single port fast charging, USB-C port supports 20V output, can charge laptops, and supports PPS fast charging, which also has good compatibility with Android mobile phone fast charging.

The USB-A interface also supports fast charging, with mainstream fast charging protocol support, which can meet the charging needs of mobile phones and other devices. Let's take a detailed disassembly of this PD3.0 charger to see how the materials and workmanship are.

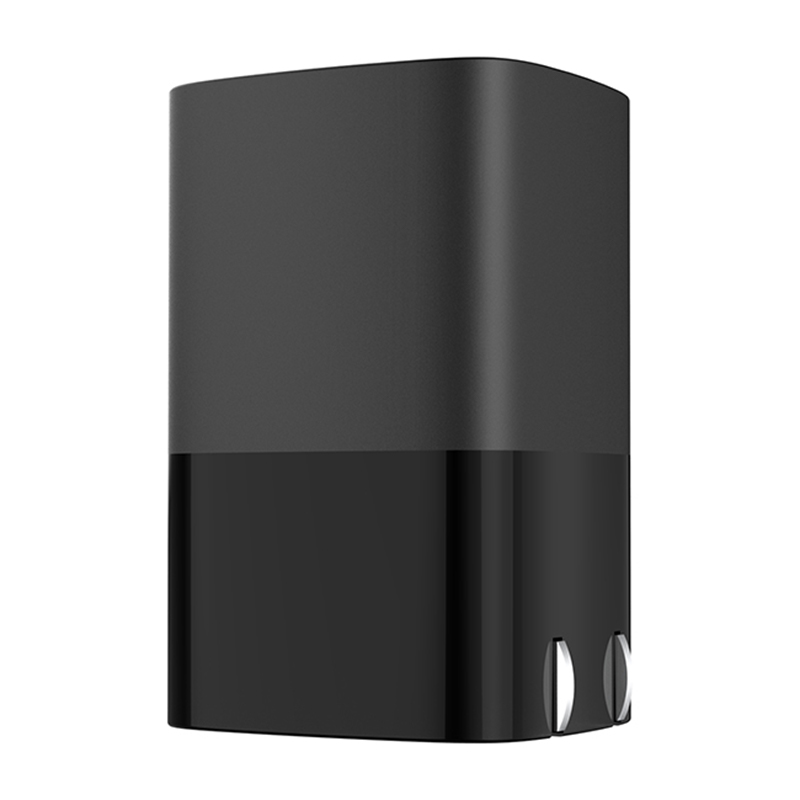

The charger is designed in a square shape, with a black PC material shell, all matte surfaces, and rounded corners.

model：TR-333

Material:PC/ABS

USB Type:1USB-A + 1TYPE-C

Input:AC 100V~240V 50/60Hz 1.5A

C1 Output :5V~3A,9V~3A,12V~2.5A   PD 30W

A1 Output:5V~3A,9V~2A,12V~1.5A  QC 18W

A1+C1:5V~3A total 15W

Power:30 MAX

Colour:Customize

Certifiation:EMC LVD ERP ROHS

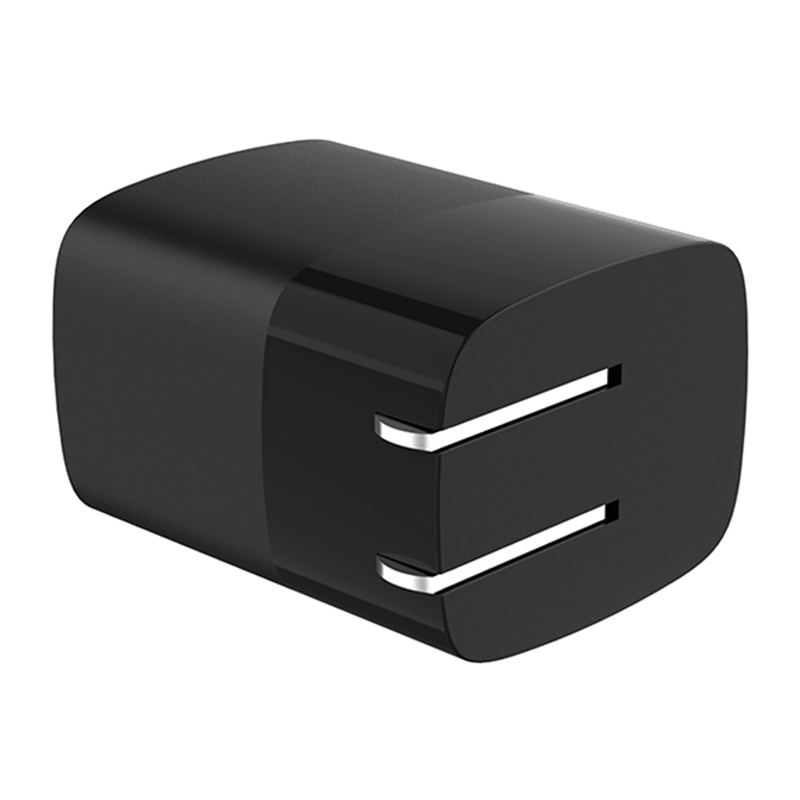

The input is equipped with a foldable US pin, which is easy to carry and will not scratch other devices in the bag.

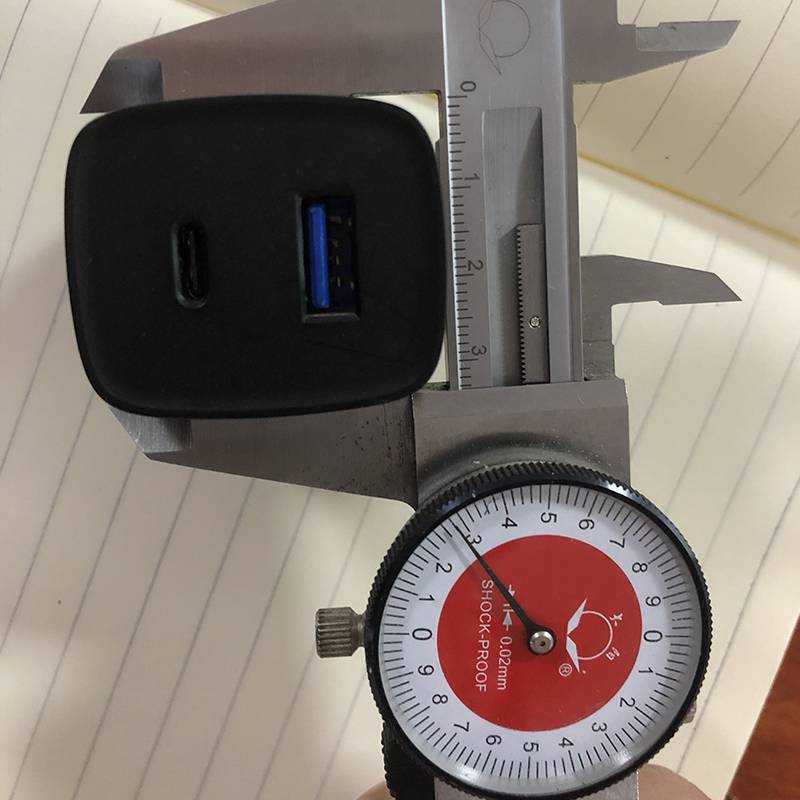

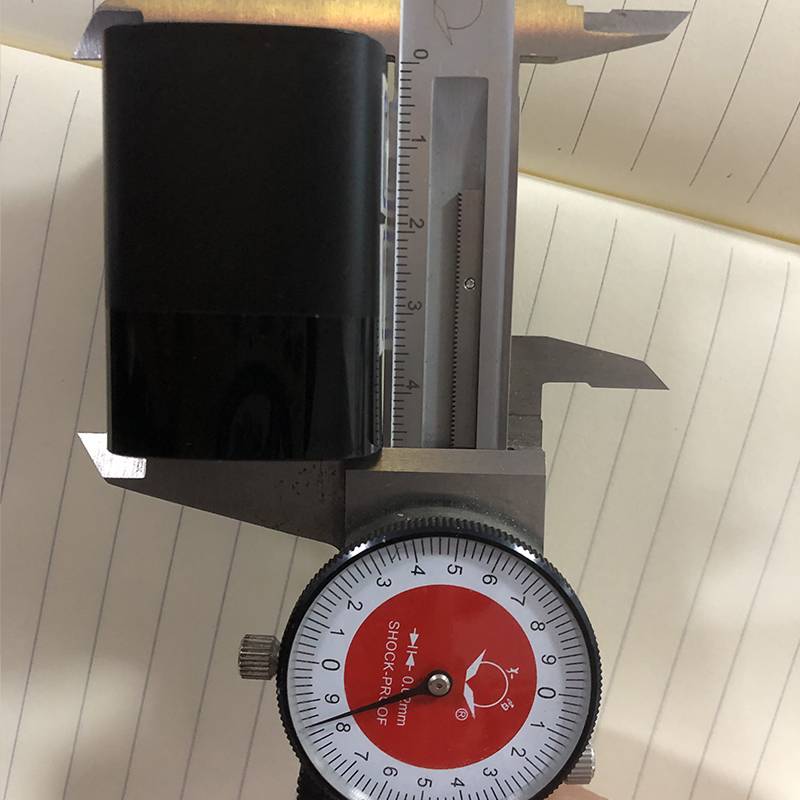

The measured body height is about 47.5mm

The width is about 33mm.

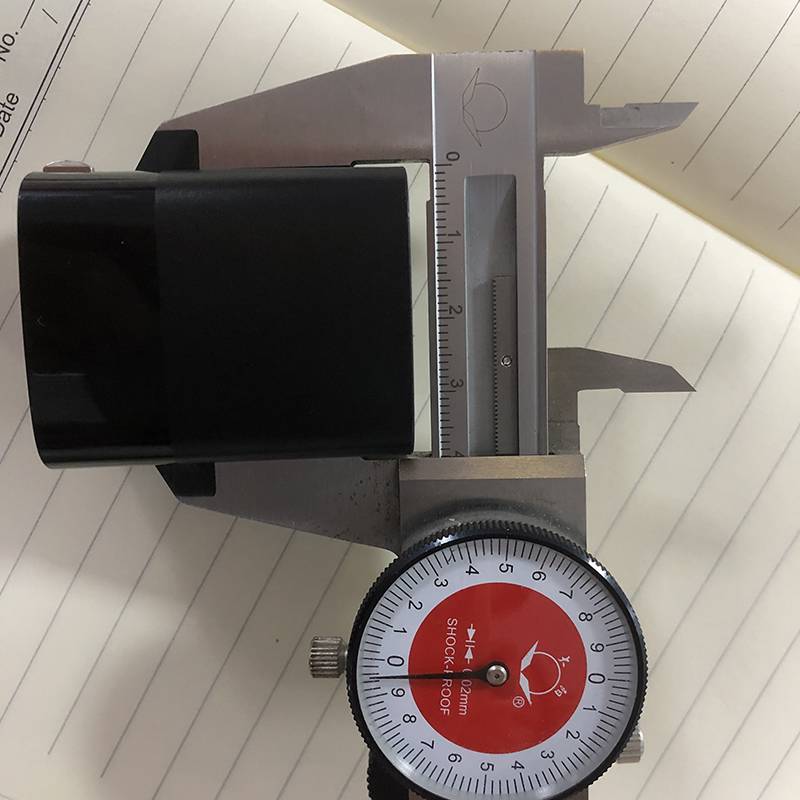

The thickness is about 39mm.

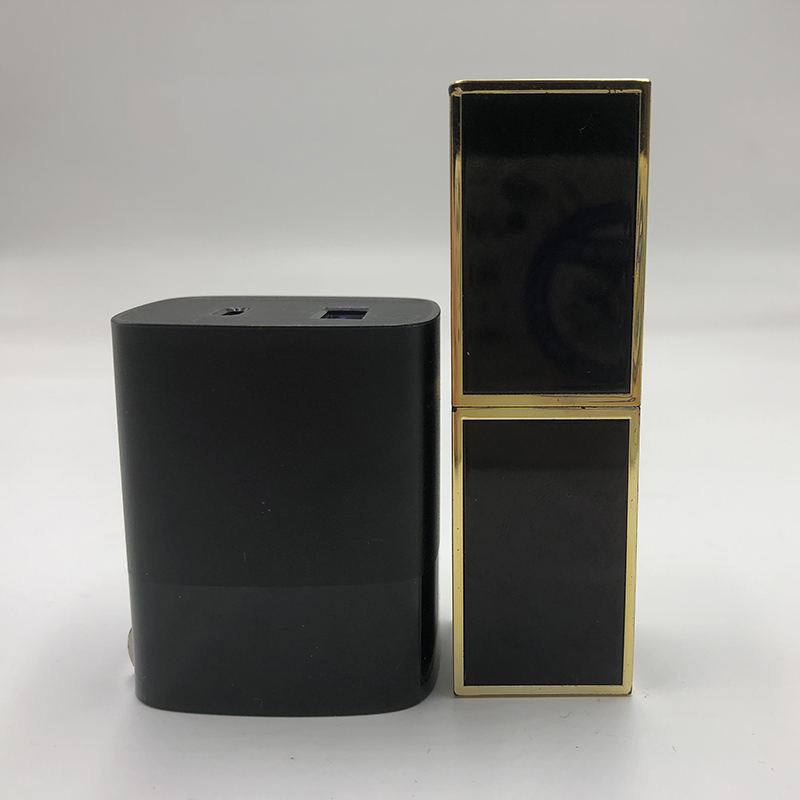

Compared with the mouth, the volume is even smaller.

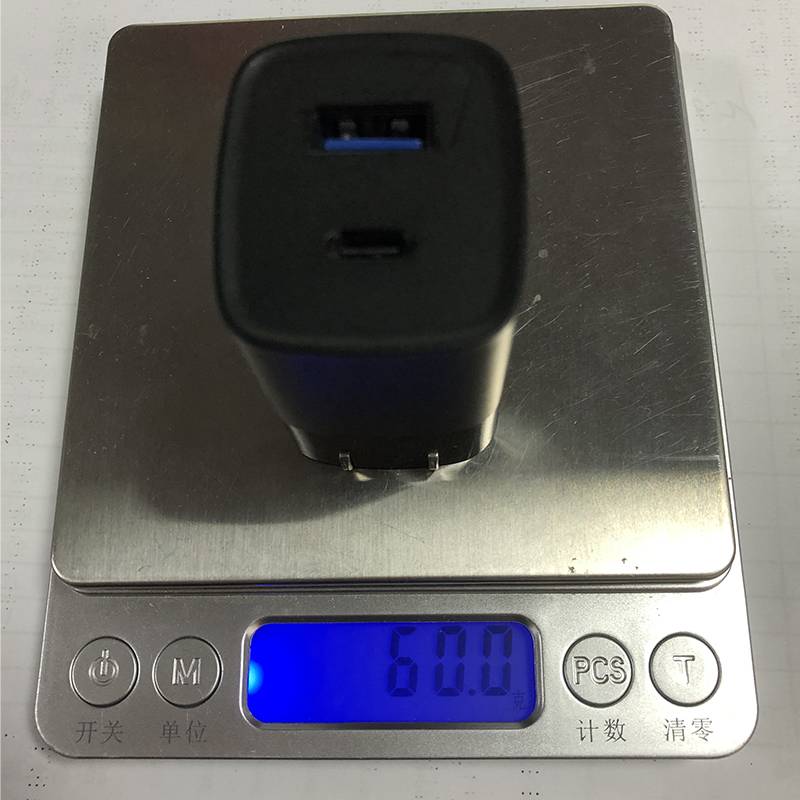

Net weight is about 60g.

Using TR-333, the USB-C port supports Apple 2.1A, PD3.0, and PPS charging protocols.

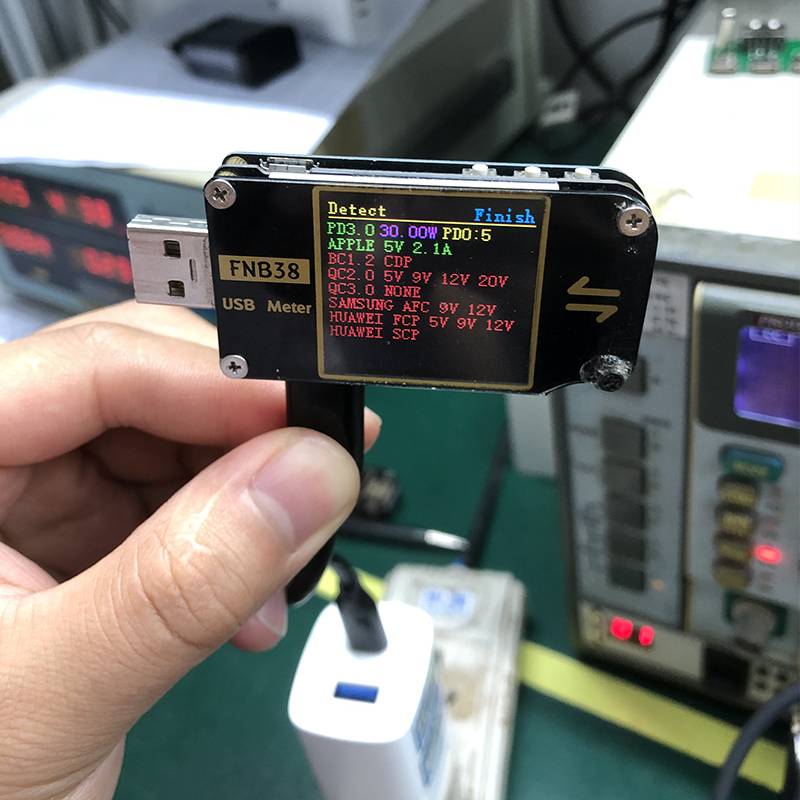

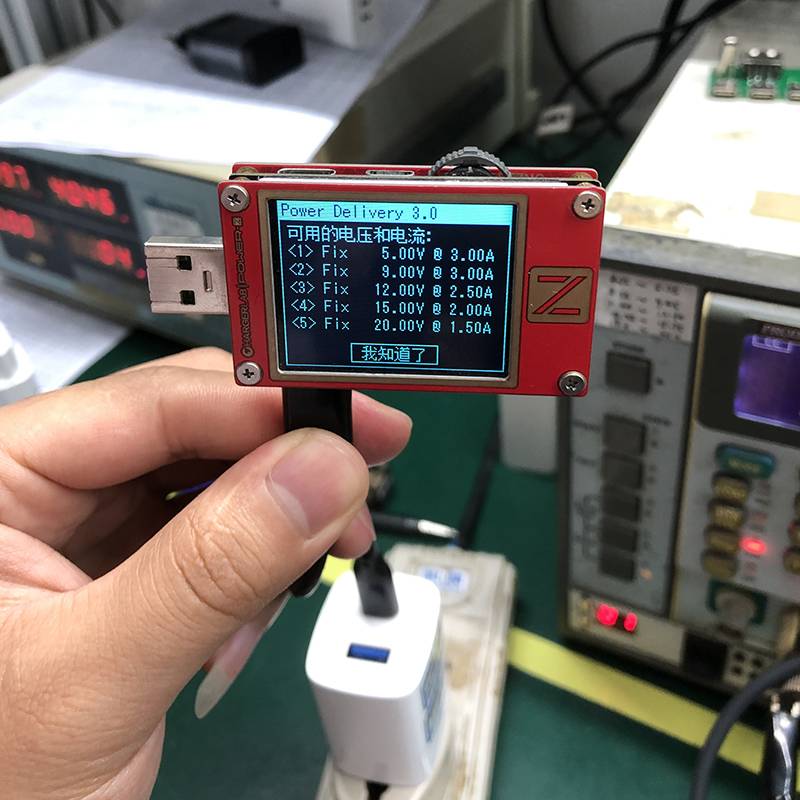

In addition, the PDO message shows that the C port also has five groups of fixed voltage gears, 5V3A, 9V3A, 12V2.5A, 15V2A, 20V1.5A, and two sets of PPS voltage gears of 3.3-11V3A and 3.3-16V2A.

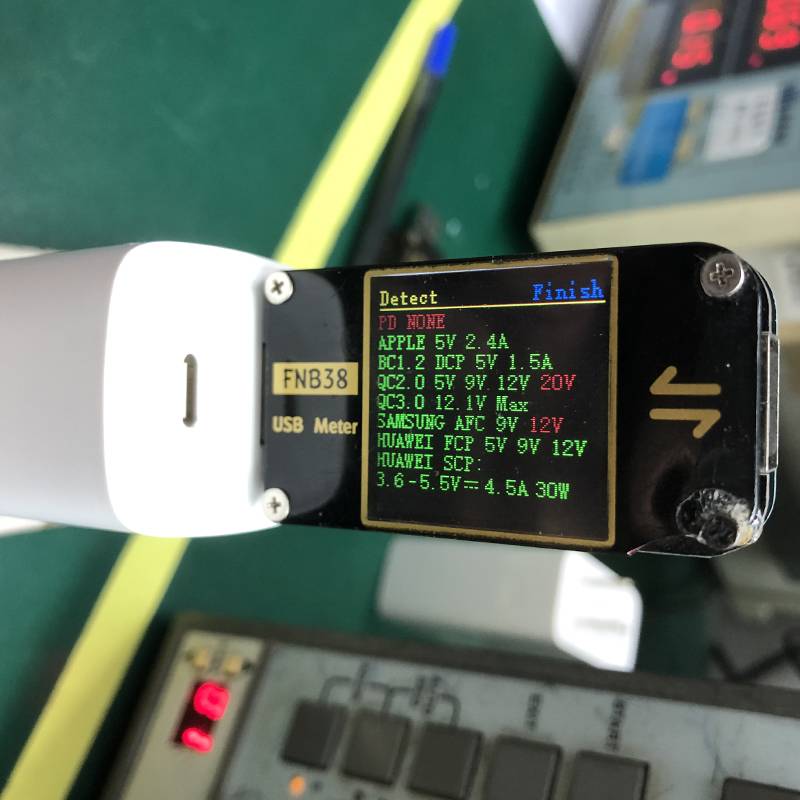

It is measured that the USB-A port supports Apple 2.4A, QC3.0, AFC, FCP, and PPS charging protocols.

Xiaobian product analysis summary
The 30W dual-port PD3.0 fast charger launched by MSH adopts folding pins, with a bright surface shell and a cut surface design, which is small in size and exquisite in appearance. The charger supports 30W output power, has 20V output, and supports laptop charging. It also supports PPS fast charging, compatible with mainstream Android mobile phone fast charging. The USB-A port also supports fast charging, which is very practical.

The editor learned through dismantling that MSH's 30W dual-port PD3.0+QC3.0 charger uses Dongke Semiconductor's fast charging source solution, using DK036G GaN co-packaged chip and DK5V100R15S synchronous rectifier chip. Components are very streamlined. The output uses the cloud silicon semiconductor XPD938 protocol chip, with high integration and comprehensive protocols. Both the input filter capacitor and the output solid capacitor are from Yiyang Wanjingyuan, the overall workmanship is solid and the materials are reliable.
