5V8A desktop ac dc adapter with power cord 48W Desktop Power Adapter

5V8A desktop ac dc adapter with power cord 48W power adapter for laptop with CE/GS/UL/CB/KCC/ROHS

Product Specification:
  • 16190-Desktop :
  • 3 Years Warranty :
  • Energy Efficiency Level VI :
  • CE GS UL CB FCC SAA C-Tick RCM PSE KC KCC CCC Approvals :
  • Optional White Color :
  • Output Voltages from 5V-36V :
  • Class II Construction :
  • Min. Order 1000 Pieces :
  • Lead Time 20-25 working days :
INQUIRY NOW
Product Details

 EFFICIENCY VI

 36-48 WATT OUTPUT POWER

 OVERCURRENT PROTECTION

 SHORT CIRCUIT PROTECTION

 INPUT PROTECTION

 ROHS COMPLIANT





 CE        GS

 UL         CB

 FCC      SAA

 C-Tick   RCM

 PSE      KC

 KCC      CCC

 ROHS   REACH




TYPICAL MODEL LIST

I/P Voltage

Typical model

Output Voltage

Output Current

Ripple & noise

Efficiency

90 - 264V

47 - 63HZ

CGSW48-050-5000

5V

5000mA

50mV

VI

CGSW48-090-5000

9V

5000mA

90mV

VI

CGSW48-120-3000

12V

3000mA

120mV

VI

CGSW48-120-4000

12V

4000mA

120mV

VI

CGSW48-150-3000

15V

3000mA

150mV

VI

CGSW48-240-2000

24V

2000mA

240mV

VI

INPUT SPECIFICATIONS

GENERAL SPECIFICATIONS

Input Voltage

90〜264VAC

Primary to Secondary

50MΩ MIN

Input Frequency

47〜63Hz

Efficiency

VI

Input Current

1.2A Max

Standby Power

0.1W MAX

Inrush Current

40A Max

Leakage Current

0.25mA MAX

OUTPUT SPECIFICATIONS

ENVIRONMENTAL SPECIFICATIONS

Output Voltage Range

5V-36V

Operating Temperature

10°C~40°C

Output Current Range

100mA-5000mA

Cooling

Convection

Output Power Range

48W Max

Temperature Coefficient

0.05%/°C

Short Circuit Protection

Automatic Recovery

Humidity

5~95%RH(non-condensing)

Over-Current Protection

Automatic Recovery

Storage Temperature

-20°C~+80%°C

Ripple and Noise

100mVp-p max

PHYSICAL SPECIFICATIONS

Turn On Time

20-30mS normal

Physical Specifications

98.1mm*45.4mm*30.5mm

Line Regulation

1% max

SAFETIES STANDARD

Output Regulation

±5%

Safeties Standard

60950/ 60335/ 61558/ 60065

MECHANICAL SPECIFICATION

PACKING DETAILS




100pcs/carton,15kg/carton

Carton size: 47*36.5*19cm





Why choose us

Company Profile

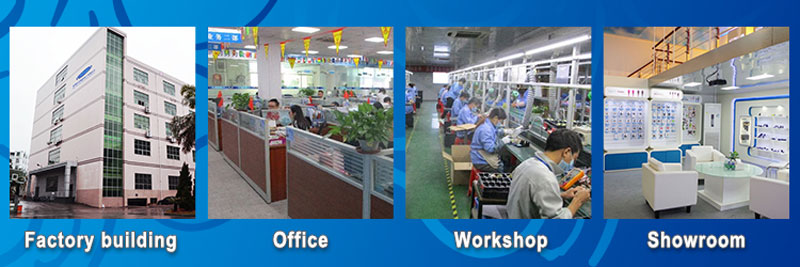

Our factory

Certificate Presentation

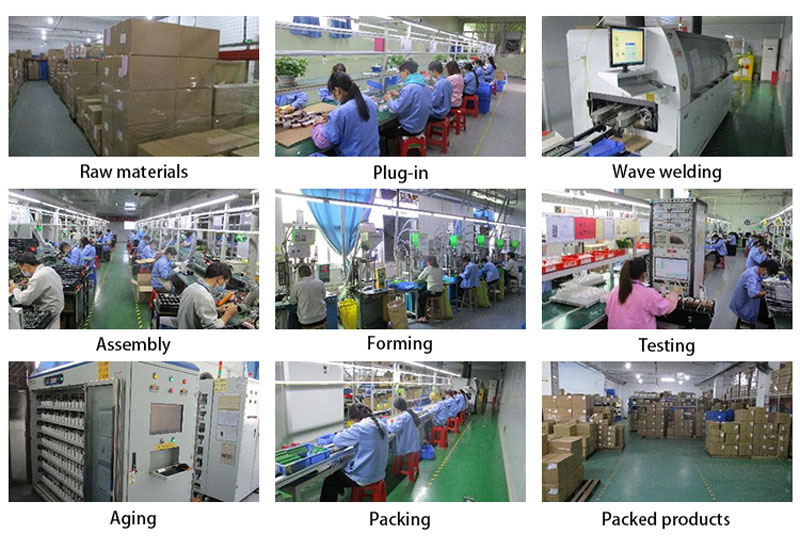

Production Flow

Our team

Exhibition Information​

Transportation & Payment​

FAQ

Q1. Are you a trader or a factory?
MSH: Meishunhe Electronics Limited was established in 2008 as a factory. We are in the charger and
cable industry for more than 12 years, we have rich experience in research and development.

Q2.Can you do OEM & ODM?
MSH: Yes, we do OEM & ODM orders. We have a mature R&D team with 15 engineers. Just give us
your design, we will make samples for you soon.

Q3. What is the packaging for your product?
MSH: Our product has retail packaging with good quality, and we also can do customized packaging
for our OEM customers. Please contact us and inform the packing details you like. Thanks.

Q4. Can I get a sample from you for quality checking?
MSH: Yes, samples are available.
For samples with stock, we can ship immediately.

Q5. How long can I expect to get the sample I needed?
MSH: After we receive the sample cost from you, the samples will be delivered via DHL, UPS, TNT,
FEDEX, etc, and arrive in your country in 5-7 days.

Q6. What about the lead time for mass products?
MSH: 25-35 days after deposit received, depends on QTY.

Q7. How does your company do regarding quality control?
MSH: Our QC team will do 4 times 100% strict quality control inspection before shipment to assure
the best quality.

Q8.Is your price competitive enough?
MSH: We can not commit that our price is the lowest, but as a manufacturer that has been in the
charger products linefor 12 years, we have rich experience and we have the ability to control
the cost. We will provide our customers with cost-effective products, and you will find our products
deserve this value. We can guarantee high-quality products so that you have no worries and safe use.

Q9.Can I visit your factory? / Where is your factory located?
MSH: Yes, welcome to contact us for visiting at any time.
